Company introduction

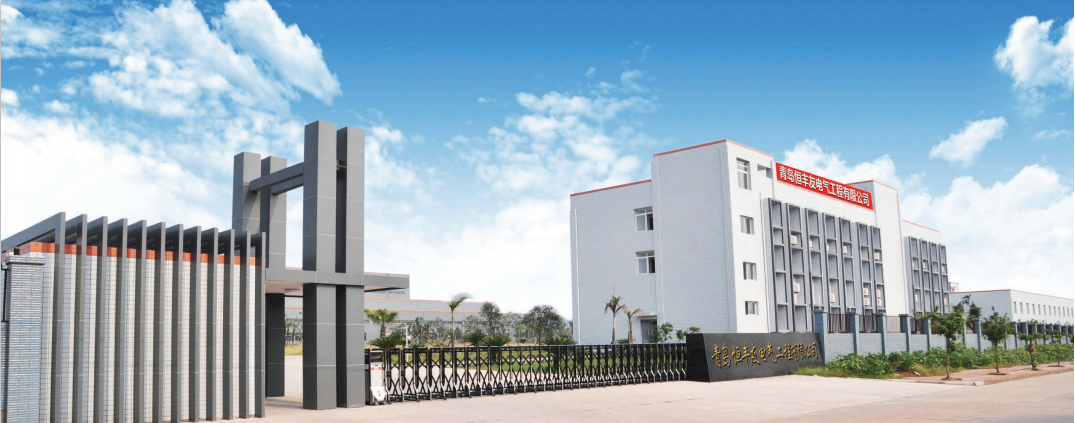

Hengfengyou transformer Qingdao branch is one of the holding subsidiaries of "Qingdao Hengfengyou group". It has been specialized in the development research, manufacturing and service of power transformers for 30 years. At present, the company has 10 senior engineers, 30 senior technicians, more than 200 employees, with an annual output value of 50 million US dollars and an annual production capacity of more than 10 million kVA. Hengfengyou is a large-scale enterprise in the field of power transmission and distribution equipment manufacturing. With high-quality products and perfect service system, It now provides reliable power transformer products and services for more than 50 countries and regions around the world. It has established a good reputation and image of "HFY" brand in the global market, and won extensive trust and praise from customers.
Our main products are: oil immersed transformer, dry type transformer, amorphous alloy transformer, experimental transformer, electric furnace transformer, rectifier transformer, etc. At present, our 10kV, 12kV, 20kV, 33kV, 35kV oil immersed transformers of S11, S13 series , 10kV, 12kV, 20kV, 33kV, 35kV epoxy cast dry-type power transformers of SCB10, SCB13 series , SH15, SCBH15 amorphous alloy power transformers, on load tap changing transformers and other products have passed the inspection of the national electrical product quality supervision and inspection agency and obtained the registration model record certificate. The products also passed the energy efficiency product certification of China quality certification agency, CCC product certification of national power certification agency, EU CE certification, ISO9001 quality management system certification and so on.
Products introduction:
10KV oil immersed transformer
The product complies with the national standard GB1094-1996 and GB /t6451-2008. This is the latest series product with low loss copper winding. It is made of high-quality materials. New technology and materials are used for coil body and insulation. This product shows advantages of low loss, low noise and high efficiency, and can achieve good energy-saving effect and reduce pollution.

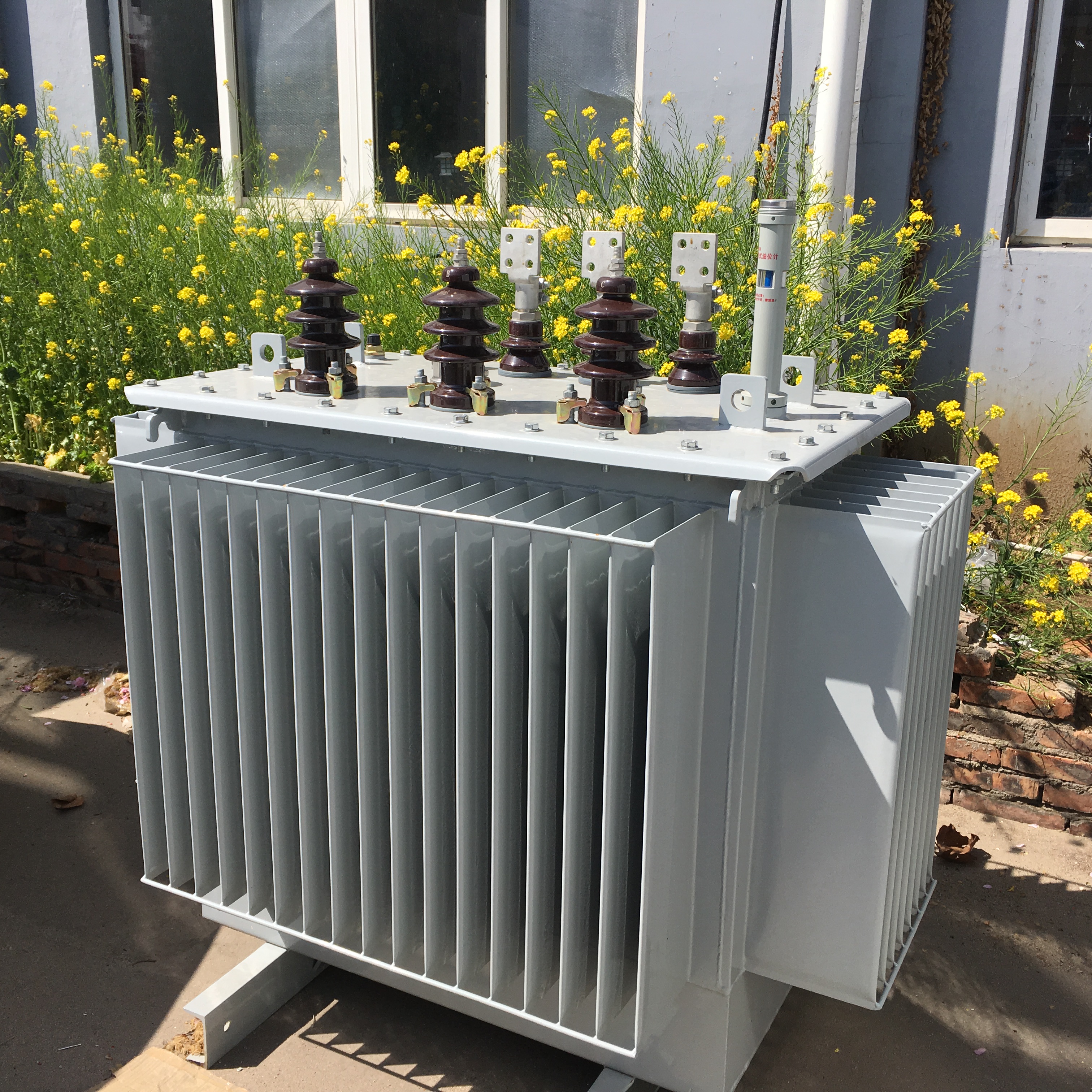

12KV oil immersed transformer
The 12kV fully-sealed oil immersed power transformer shows advantages of low loss, low noise and high efficiency, which achieve good energy-saving effect and reduce pollution. Compared with the normal oil immersed transformer, the fully-sealed transformer cancels the external oil tank. The change of oil volume is automatically adjusted and compensated by the elasticity of the corrugated sheet of the corrugated oil tank. The transformer is isolated from the air to prevent and slow down the oil deterioration and aging of the insulation. This enhance the operation reliability, and free maintenance under normal operation.
| Main technical parameters |
| Main circuit rated voltage(V) | .......................... | Ac 400 (600) |
| Rated voltage of auxiliary circuit (V) | .......................... | Ac 220/380 (400) dc 110/220 |
| Rated frequency (Hz) | .......................... | 50(60) |
| Rated insulation voltage(V) | .......................... | 690(1000) |
| Rated current(A) | The level of bus | ≤6000 |
| Rated short-time bus withstand current (kA/1s) | .......................... | 50,80 |
| Rated peak withstand current of bus (kA/0.1s) | .......................... | 105,176 |
| Power frequency test voltage (V/1min) | main circuit | 2500 |
| Auxiliary circuit | 1760 |
| bus | Three-phase four-wire system | A,B,C,PEN |
| Three-phase five-wire system | A,B,C,PE,N |
| Protection grade | .......................... | IP30 |
