Sh15 Amorphous Alloy Full Enclosed 400kVA Used Power Distribution Transformers
| Type | Rated capacity (KVA) | Connection groupgrade | Voltagecombination(KV) | No-loadloss | loadoss(W) DyIYy | No-load urent(%)r | Short-dirut esitance(%) |
| Highvoltage | Tappingrange | Lowoltage | (W) |
| SH15-M-30 | 30 | Dyn11 | 6 6.3 10 10.5 1 | 土5% . 土2x2.5% | 0.4 | 3 | 630/600 | 1.50 | 4.0 |
| SH15-M-50 | 50 | 3 | 910/870 | 1.20 | 4.0 |
| SH15-M-63 | 63 | 0 | 1090/1040 | 1.10 | 4.0 |
| SH15-M-80 | 80 | 30 | 1310/1250 | 1.00 | 4.0 |
| SH15-M-100 | 100 | 75 | 1580/1500 | 0.90 | 4.0 |
| SH15-M-125 | 125 | 35 | 1890/1800 | 0.80 | 4.0 |
| SH15-M-160 | 160 | 100 | 2310/2200 | 0.60 | 4.0 |
| SH15-M-200 | 200 | 120 | 2730/2600 | 0.60 | 4.0 |
| SH15-M-250 | 250 | 140 | 3200/3050 | 0.60 | 4.0 |
| SH15-M-315 | 315 | 170 | 3830/3650 | 0.50 | 4.0 |
| SH15-M-400 | 400 | 200 | 4520/4300 | 0.50 | 4.0 |
| SH15-M-500 | 500 | 240 | 5410/5150 | 0.50 | 4.0 |
| SH15-M-630 | 630 | 320 | 6200 | 0.30 | 4.5 |
| SH15-M-800 | 800 | 380 | 7500 | 0.30 | 4.5 |
| SH15-M-1000 | 1000 | 450 | 10300 | 0.30 | 4.5 |
| SH15-M-1250 | 1250 | 530 | 12000 | 0.20 | 4.5 |
| SH15-M-1600 | 1600 | 630 | 14500 | 0.20 | 4.5 |
| SH15-M-2000 | 2000 | 750 | 18300 | 0.20 | 5.0 |
| SH15-M-2500 | 2500 | 900 | 21200 | 0.20 | |

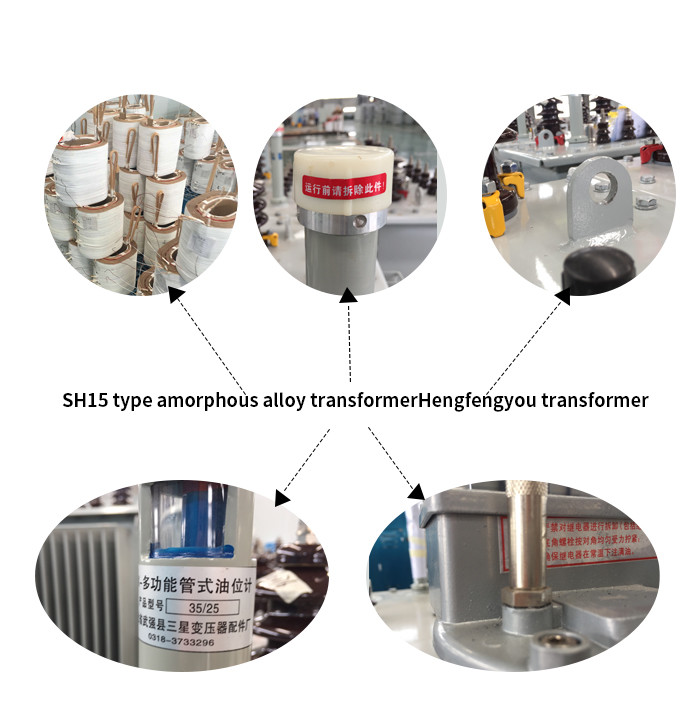

Product features
1.This product is ilfilled sealing type. The theory is the same with that of closed- type power
transformer. The basic elements of amorphous alloy are iron, nickel, cobalt, silicon, boron,
carbonand so on. It is a kind of isotropic soft magnetic material with low magnetic power and
withoutstructure defect which hinders the movement of domain wall. It is extremely thin, only
0.027mm.
2.The filling coefficient is as smaller as 0.75-0.8, the specific resistance is high which is about
3-6times of that of silicon steel plate and the hardness of it is 5 times of that of silicon steelsheet.
Amor-phous alloy materials are highly profitable. Load loss of SH15-M-30" -2500/6*10 series
products isdecreased by15% compared to the standard value set forthin GB/T 6451. The no-load
loss is decreasedby70% compared to the standard value setforth in GB/T6541. The standard
JB/T10318-2002 TechnicalParameters of Oil-immersed Amorphous Alloy Core Dstibutioni
Transfomers is executed.S13 type 10KV double winding series main product property parameters
Technical requirements
1.Hengfengyou continues to increase investment of technical strength and modernequipment,
optimizes the production process and process constantly, has estab-lished strict and perfect
quality management standard, conducts strict moni-toring for each process from raw material
receiving inspection, production, fin-ished product inspection and warehousing, finished
products delivery toinstallation, never allows unqualified products to flow out, takes the idea
of"Zero Defect" into each detail bit by bit, ensures each process be able opass all standards,
and manufactures perfect products carefully.
2.It is our excellent internal control standard and product quality assurancesystem that makes
Hengfengyou transformer achieve favor from more andmore customers, and obtain affimation
from domestic and foreign customers

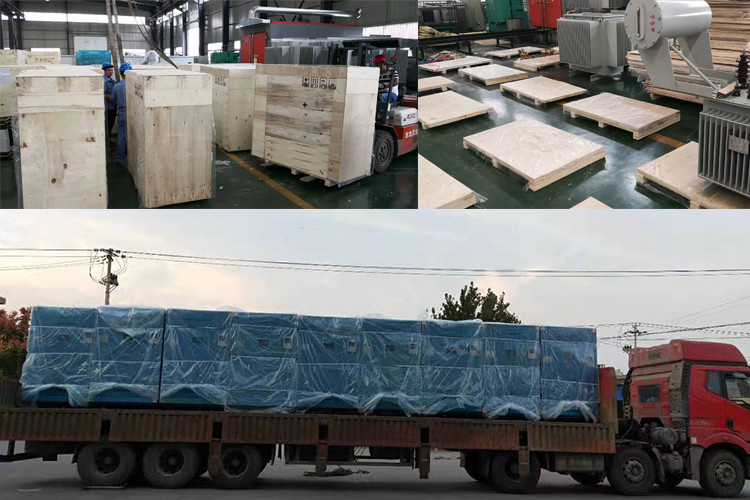

Product transportation
1.Sea Transportation
2.land transportation
3.railway transportation
4.Air Transportation
Qualification certificate
All products of the company have passed the national type test like CCC, CQC , CTQC
and other national mandatory product certification, and has a perfect quality, occupational
health and environmental management system certification system. Our products have
passed ISO9001, 2000 and other international quality system certification.
